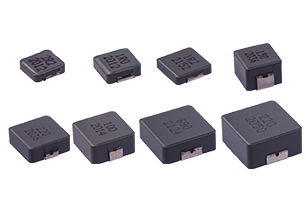

羰基一体成型电感
MD(一般用)
FEATURES
•Molded type
•High saturation current due to CIP material
•Nature air gap and no acoustic noise
•Different sizes available
•Operating temperature:-40°C to +125°C
APPLICATION
•High current DC/DC converter
•LC flter
FEATURES
•Molded type
•High saturation current due to CIP material
•Nature air gap and no acoustic noise
•Different sizes available
•Operating temperature:-40°C to +125°C
APPLICATION
•High current DC/DC converter
•LC flter
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | MD3512 | 3.5*3.2*1.0 | 0.47~10.0 | 1.0~5.0 | 1.4~7.2 | 25.0~498 |  |
| MD3520 | 3.5*3.2*1.8 | 0.1~10.0 | 1.4~10.5 | 1.6~14.0 | 6.6~366 | |
 | MD4012 | 4.45*4.06*1.0 | 0.1~22.0 | 0.8~11.5 | 1.0~25.0 | 4.3~950 | |
| MD4020 | 4.45*4.06*1.8 | 0.1~22.0 | 1.2~12.0 | 1.4~35.0 | 3.2~470 | |
 | MD5012 | 5.7*5.2*1.0 | 0.1~15.0 | 1.3~14.0 | 1.6~14.5 | 4.3~410 | |
| MD5015 | 5.7*5.2*1.3 | 0.15~22.0 | 1.2~16.0 | 1.7~25.0 | 3.6~405 | |
| MD5018 | 5.7*5.2*1.6 | 0.15~15.0 | 1.7~15.5 | 2.3~27.0 | 3.5~275 | |
| MD5020 | 5.7*5.2*1.8 | 0.1~22.0 | 1.5~18.0 | 1.8~45.0 | 3.6~350 | |
 | MD5030 | 5.7*5.2*2.8 | 0.1~33.0 | 1.6~23.0 | 1.6~27.0 | 2.5~380 | |
 | MD7012 | 7.0*6.6*1.0 | 0.15~22.0 | 1.2~14.0 | 1.7~24.0 | 4.9~540 | |
| MD7015 | 7.0*6.6*1.3 | 0.1~22.0 | 1.5~17.5 | 2.5~35.0 | 2.5~420 | |
 | MD7018 | 7.0*6.6*1.6 | 0.1~33.0 | 1.3~18.0 | 2.1~45.0 | 2.1~550 | |
| MD7020 | 7.0*6.6*1.8 | 0.1~22.0 | 1.5~21.0 | 2.5~40.0 | 2.0~236 | |
 | MD7024 | 7.3*6.6*2.2 | 0.1~22.0 | 1.8~30.0 | 3.0~70.0 | 1.4~185 | |
| MD7030 | 7.3*6.7*2.8 | 0.1~47.0 | 1.75~32.5 | 2.0~60 | 1.2~302 | |
| MD7040 | 7.3*6.6*3.8 | 0.15~33.0 | 1.8~30.0 | 3.2~55.0 | 0.9~180 | |
 | MD7050 | 7.3*6.6*4.8 | 0.33~68.0 | 1.2~25.0 | 2.0~32.0 | 2.5~386 | |
 | MD1040 | 11.0*10.0*3.8 | 0.15~47.0 | 3.0~43.0 | 4.5~75.0 | 0.5~145 | |
 | MD1050 | 11.0*10.0*4.8 | 0.22~68.0 | 2.5~45.0 | 4.0~70.0 | 0.45~176 | |
 | MD1335 | 13.5*12.5*3.3 | 1.0~47.0 | 3.0~24.0 | 5.5~40.0 | 2.7~181 | |
 | MD1350 | 13.5*12.5*4.8 | 0.2*18.0 | 7.5*52.0 | 11.0~110 | 0.45~135 | |
 | MD1360 | 13.5*12.5*5.7 | 0.47~68.0 | 5.0~38.0 | 6.0~60.0 | 0.92~120 | |
 | MD1365 | 13.5*12.5*6.2 | 0.15~47.0 | 6.5~55.0 | 9.5~118 | 0.49~76 | |
 | MD1870 | 18.0*16.9*6.7 | 0.45~100 | 5.3~62.0 | 12.0~125 | 0.8~102 | |
