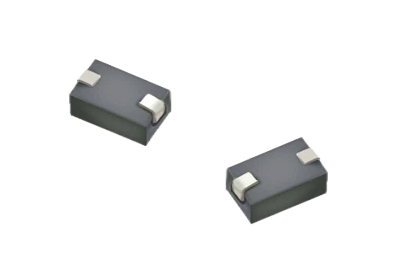

扁线电源线磁珠
FBFA(车用)
FEATURES
•100% Lead(Pb) & Halogen-Free and RoHS compliant
•AEC-Q200 qualified
•Operating temperature:-55°C to +125°C
APPLICATION
•Power Line filter for body controls,electromotor andcar multimedia etc
FEATURES
•100% Lead(Pb) & Halogen-Free and RoHS compliant
•AEC-Q200 qualified
•Operating temperature:-55°C to +125°C
APPLICATION
•Power Line filter for body controls,electromotor andcar multimedia etc
| 产品图 | 系列号 | 尺寸(mm) | 阻抗(Ω) | 温升电流(A) | 直流电阻(mΩ) | 文件下载 |
 | FBFA3023 | 3.08*2.9*2.2 | 40 | 15 | 0.6 |  |
 | FBFA4030 | 4.0*3.1*2.5 | 53 | 15 | 0.6 | |
 | FBFA8530 | 8.5*3.0*2.5 | 100 | 13 | 1.0 | |
